Orisen Wireless Sensor Network Solutions
Spectrum is a miniature sensing kit that can be put together based on the sensing and battery requirement by the combination base board + sensor module(s) + battery +enclosure + extra accessories. Individual bits can be purchased separately.
Base Board
- Spiral Core S1 - A small size Main WiSA board comprising Freescale MC13224 controller with Zigbee wireless connectivity, micro-SD card reader, power and charging solution. Fit inside Enclosure S1 (52x32x15mm), sensor module plug-in slot and expansion connectors.
- Spiral Core S2 - A larger size Main WiSA board, fit in Enclosure S2 (68x42x18mm).
Enclosure
- Jewel Case S1 - a smaller size of the device case, fit Spiral Core S1, IMU/ IMU+F sensor module and Lithium battery S1. With Micro-USB cut out and option for strap loops.
- Jewel Case S2 - a larger size of the device case, fit Spiral Core S2, IMU/IMU+F/IMU+R sensor module and Lithium battery S2, with micro-USB cut out and option for strap loops.
Spectrum Platform
Products

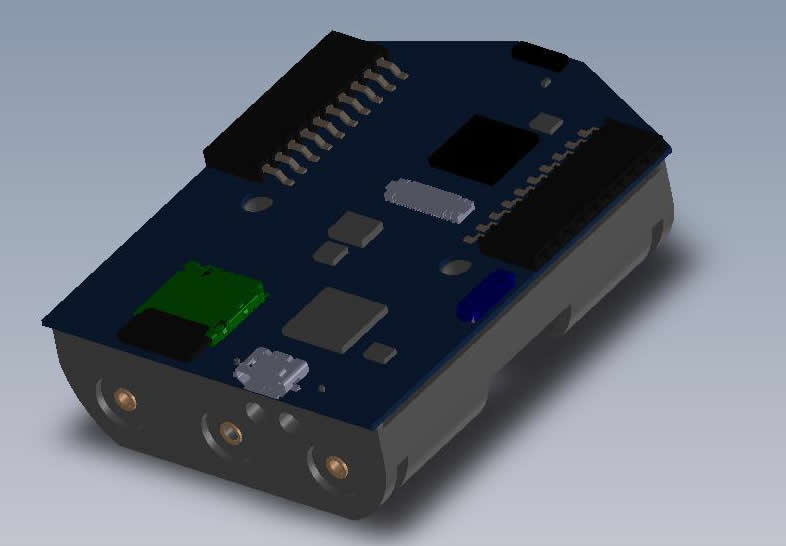

Prime is an all-in-one platform that has all the basic elements to be used on its
own as either a development or teaching platform. Sensor modules and Extras can be
used. Pure units can be powered by 3 AAA batteries or USB port.
- Base board - An all-in-one platform with programming interface, micro-USB connectivity, micro-SD card reader, temperature and accelerometer sensors, 4 LEDs, 2 Buttons and one expansion slot. Onekit can be used with IMU/IMU+F/IMU+R sensor module and/or bluetooth/ANT+ wireless communication module.
Sensors and Accessories
Prime Platform
Sensors and Accessories
Sensors Module
- IMU sensor module - 3-degree of freedom (DoF) accelerometer that can be programmed up to +/-16G with 14 bits ADC; 3-DoF gyroscope +/-2000 degree/second with 16 bits ADC; 3-DoF magnetometer
- IMU+F filtered sensor module - with 9-DoF IMU and processed GPS data sensor output.
- IMU+R raw GPS sensor module - with 9-DoF IMU sensors and raw GPS data sensor output.
Batteries
- Lithium battery S1 (xxxmAH)
- Lithium battery S2 (xxxmAH)
Extras
- Blue tooth communication module
- USB charging tower - USB hub, allowing 20 devices to be charged simultanuously.
- ANT+ communication module
