TYPO3 Exercise 2 - Content Elements

Step 1

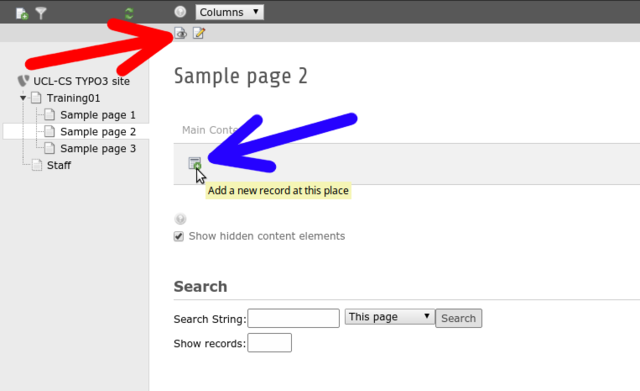

In your editing window select the second sample page (click on the words "Sample page 2" in the TYPO3 tree view). You should see something like the image below, which shows a page with no content. You can verify this by clicking on the view icon (arrowed in red).

Screenshot showing page with no content elements

Step 2

TYPO3 pages are built from a list of "content elements". Often there is just one, which may contain text, images, tables etc. - the page you edited in Exercise 1 was like this. However, it is possible, and sometimes beneficial, to construct a page consisting of several separate content elements. We will begin by creating a "Regular text element" in our sample page. Start by clicking the symbol (blue arrow) to create a new content element. On the page that appears, check the little circle next to "Regular text element".

You have now created a content element - at least you will have once you save it by clicking the icon. - which you should now do.

Step 3

You now have a content element but it an empty one. Click on the symbol, type some content, save it and view the result.

Give your content element a "Header" by typing in the box above the editing window.

Step 4

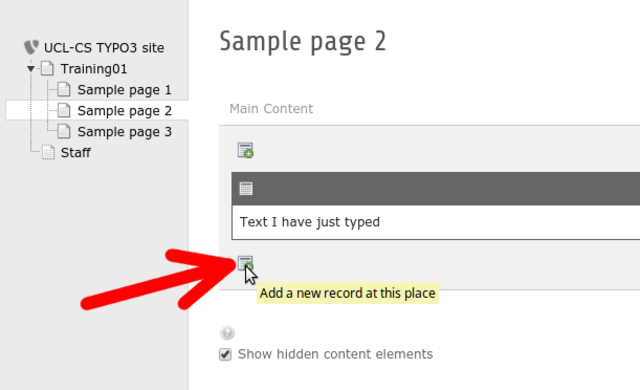

Now select the sample page again as you did in Step 1. You should now see your new content element as in the image below.

We are now going to add a second content element of type "Text & Images". Click on the "Add a new record at this place" button (arrowed) to begin. Then select Text & Images.

Screenshot showing addition of further content element

Step 5

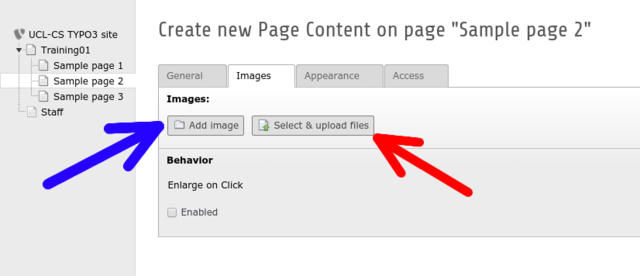

You should now see the screen below. Select the images tab.

You can use this to select an image stored somewhere on your PC. To do this click on the "Select & upload files" button (arrowed in red - this might be labelled something different in your browser).

Alternatively, click the Add image button (arrowed in blue) to select a file already stored within TYPO3.

Screenshot showing the selection of an image file

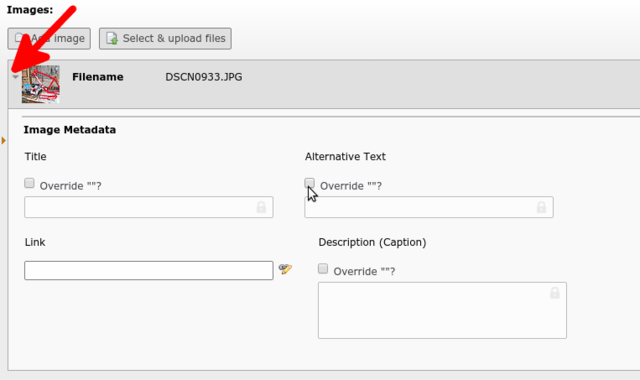

You can edit the properties of the image you have added - see the example below.

[If the properties are not visible click the little triangle (arrowed) next to the thumbnail.]

You should always add a label to describe your image. This will help the visually impaired.

Now select the General tab and add some text. Now select the Appearance tab and change the position or size of the image. Try adding additional images.

Screenshot of image properties

Step 6

Go back to the General tab and type some text.

Now go to the Appearance tab and play with some of the settings here. For example:

  • Set Indentation and Frames to Divider After
  • Set a width for your image
  • Change the Position and Alignment setting for your image
  • Upload a second image and see the effect of the Number of Columns setting.

Step 7

Begin as you did in Step 1. You should now see the two content elements you have created. Click the icon on the first one. This will enable you to edit the properties of the content element.

Note. To see all the properties make sure "Show secondary options (palettes)" is checked.

Some things to try:

  • In the Access tab try the effect of "Disable", and "Link To top" boxes.
  • In the General tab try adding a header.
  • In the General tab change the Type of the header to Heading Level 2.
  • In the General tab change the Type of the Regular text content element to "Text & images". You can now browse for an image as before and decide where it should be displayed.

You can now move on to Exercise 3.
