BioRAT Documentation
Analysing text using templates through the graphical interface

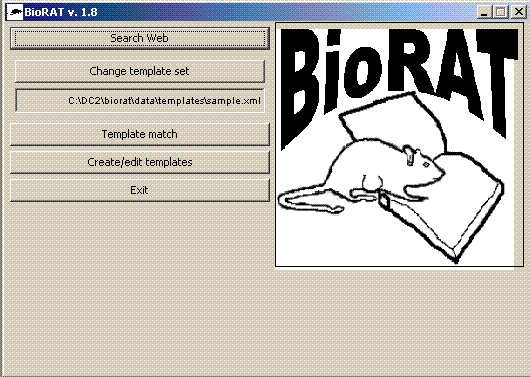

When starting BioRAT the top level option screen is shown:
In the centre-left of this, is a box showing the current template project set (dip_templates.xml, in this case). To change this, click "Change template set" and choose a new project file (*.xml). This project file will specify which template, or set of templates, will be applied. When the correct set is selected, click "Template match" to proceed and select the file(s) to be analysed. The following window will appear.
- Choose file (BioRAT List) allows you to select a paper previously downloaded through BioRAT.
- Choose file (Explorer) allows you to select any text file, whether or not it was created by BioRAT.
- Run templates applies the previously-selected template set to the currently chosen file(s)
- View last results displays the most recently created set of results
After applying the templates, the box under the buttons will display a message such as "Found 3 matches" for each document analysed.
